How to install BBQ gazebo 8 ft x 5 ft hardtop instructions
It is your to read and save these instructions before attempting to set up your gazebo.
Put the leg (A) on the foot pad (P) and fix it with 4 pcs screws (Z2) Repeat the above steps for the leg(A1)
Insert the tubes (O) into the cross connector (11)
Connect the two tubes (F)into both ends of the cross connector (11), fix them with 2pcs screws (V).
Connect tube assembly between the legA and legA1 with screws (S)

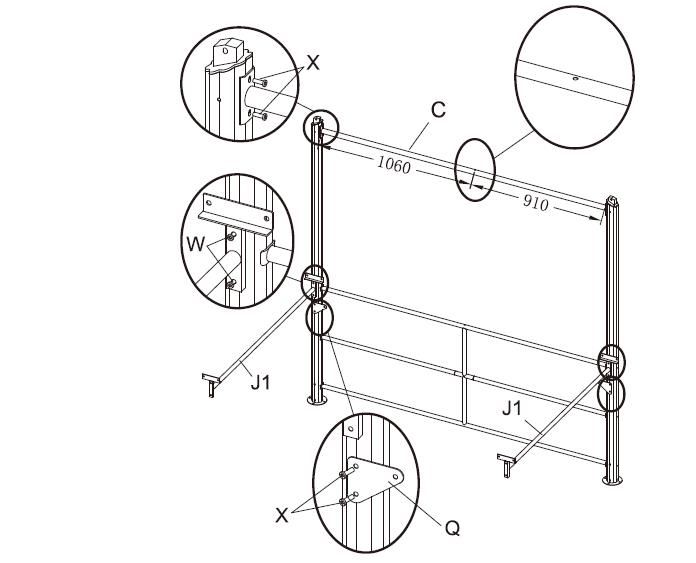

Fix the tube (C) with screws (X) at the top of the leg(A),leg(A1);Connect the cross bars (J1) on each leg with screw (W);
Use screws(X) to connect the steel triangle plate Q to legs (A), (A1)
Put the leg(B)on the foot pad (P)and fix it with 4 pcs screws(Z2), Repeat the above steps for the leg(B1).
Fix the tube(C)with screws(X)at the top of the leg(B),eg(B1)。 Use screws(X)to connect the steel triangle plate Q to legs(B),(B1).
Place the leg(B)and leg (B1) in place to connect the cross bars(J1)with srews(W)
Fix the tube(F1)at the bottom of the leg with screw(S)
Position tube (1)between the two steel triangle plates on leg(A),leg(B), and connect with 2 screws (X).
Place the mesh bar(J) above the crossbar(J1) and secure with screw(Y).
Repeat the above steps for the other legs.
Install M on cross bars (C),fix it with screw(T),pay attention to the hole faces inward and the gap faces outward.
The tube(G)and D1 is connected with the L-shaped connector(L) and fixed with the screws(Z).
Repeat the above steps for the other tubes.
Put the PC board (K) into the tube(D1) and (G),install each of the other PC board and tube in turn. Repeat the above steps to the PC board assembly.
Place the assembled PC board assembly on the tube as pictured. Use the screw (U) to connect the tube E/E1 with the leg.
Connect with the M bracket with the screws (U).
Place the other assembled PC board assembly on the top as pictured.
Use the screw(U) to connect the tube D/D1 with the leg, then connect D and E ,D1 and E1 with the screw (X).
Insert a stake(Z3) into the foot of each gazebo leg.
1. Never set up or continue to use in any rain, wind or storm conditions, especially lightning storms.Damage can occur to your gazebo and put you and others in potential danger.
2. We suggest that you take your time in order to avoid bending the frame or pinching your fingers or hands while opening and closing the frame.
3. Avoid setting up your gazebo on steep inclines.
4. Do not use your gazebo for permanent shelter. It is designed for temporary use only.
5. Keep your gazebo away from heat and flames at all time. Do not barbecue or build fires under your gazebo.
6. Never leave your gazebo unattended.
7. Never store your gazebo when it is wet or damp. Let it dry completely to avoid mildew.
8. The frame MUST be staked or properly weighted down at all times.
9.When assembling and using this product, basic safety precautions should always be followed to
reduce the risk of personal injury or damage to equipment. Please read all instructions before assembly and use.
10. Some parts may contain sharp edges. Wear protective gloves if necessary. Three or more people are recommended for safe assembly.
11. Keep all children and pets away from assembly area.
12. Begin assembly at least 9 feet from any obstruction such as fences, a garage, house, overhanging branches, laundry lines or electrical wires.
13. Please sweep or keep this unit out of snow deeper than 10 inches.
